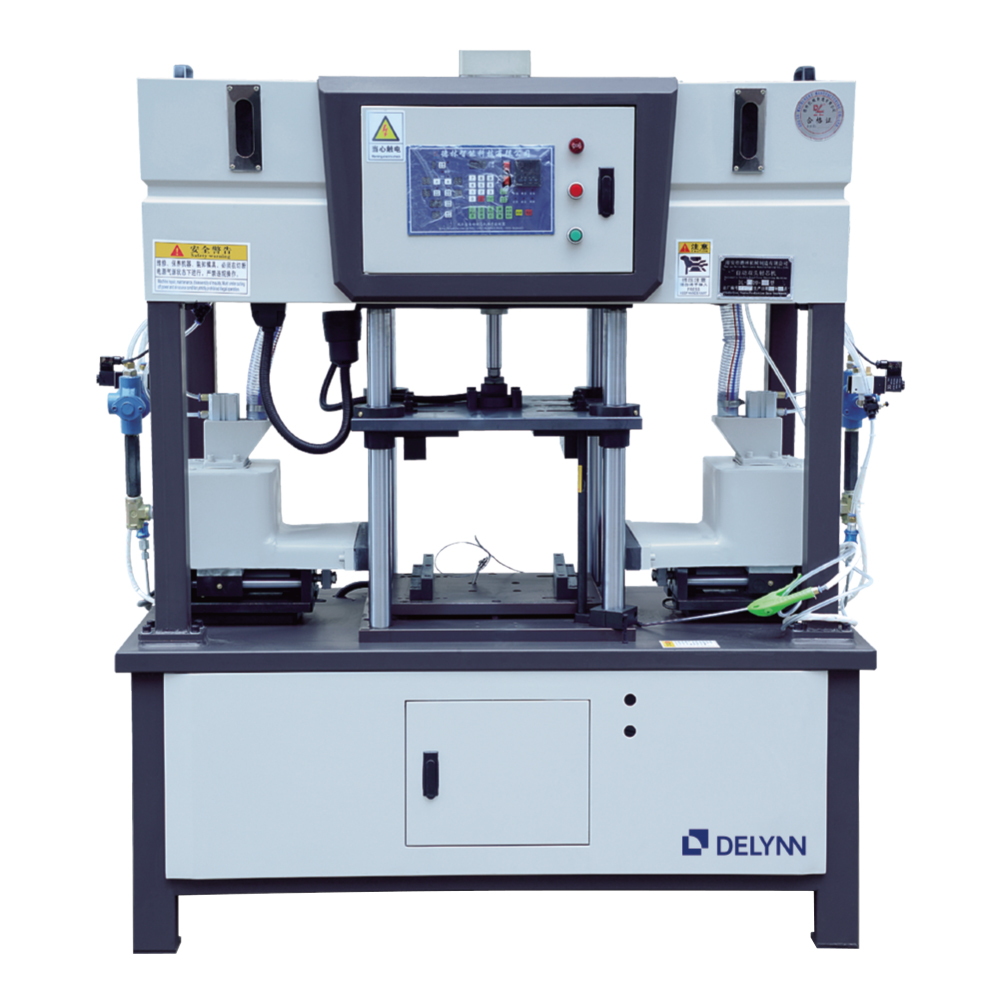

1. Automatic Double-Head heated core box shooter is a heated core box core-making equipment with a four-column operable structure which can be operated manually or automatically
2. It is applicable to sand core with a qualitative properties less than 15kg in one side.
3. Its working principle is to shoot the dry resin bonded sand into a heated core-box. After being rapidly hardened to a certain thickness, high quality sand core with a smooth surface and precise dimension is obtained.
4. The core shooting machine working procedure: Core box clamps----sand shooting head clamps----sand shooting----shooting.
| Quantity: | |
|---|---|
Application direction: plumbing, hardware, pump valves, fire fighting, automobile and motorcycle accessories and other industries.
Output analysis: sand cores for castings such as ductile iron, gray cast iron, malleable steel, non-ferrous metals, such as valves, bearing seats, pulleys, pump bodies, hydraulic parts, pipe fittings, agricultural machinery parts, stove parts, machinery and auto parts, etc. Production.
Process composition: 1. Sand adding: Pour the core sand into the sand cylinder, and open the sand closing mechanism to start receiving sand. After the sand receiving is completed, the sand shut-off mechanism is closed;

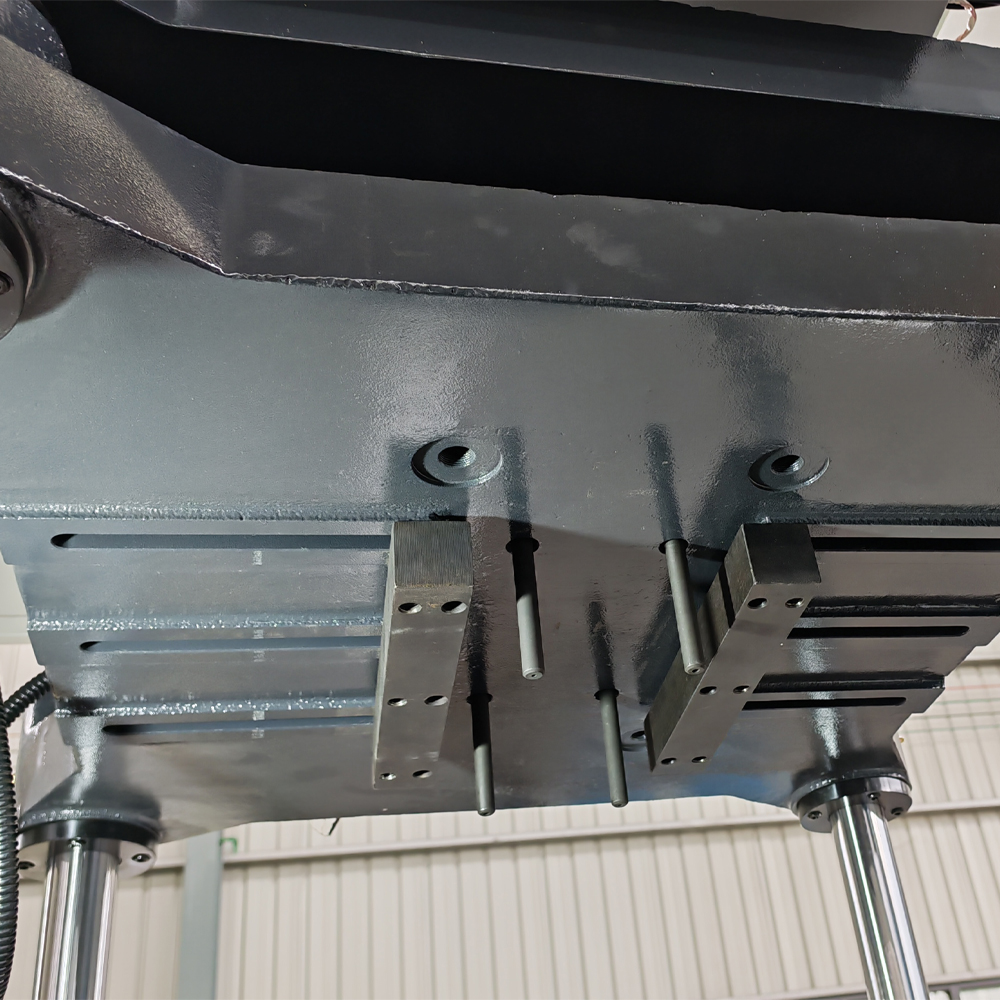

2. Mold clamping: move the movable template down, the upper and lower molds of the mold are tightly closed; enter the box, and the sand shooting board is tightly attached to the mold;

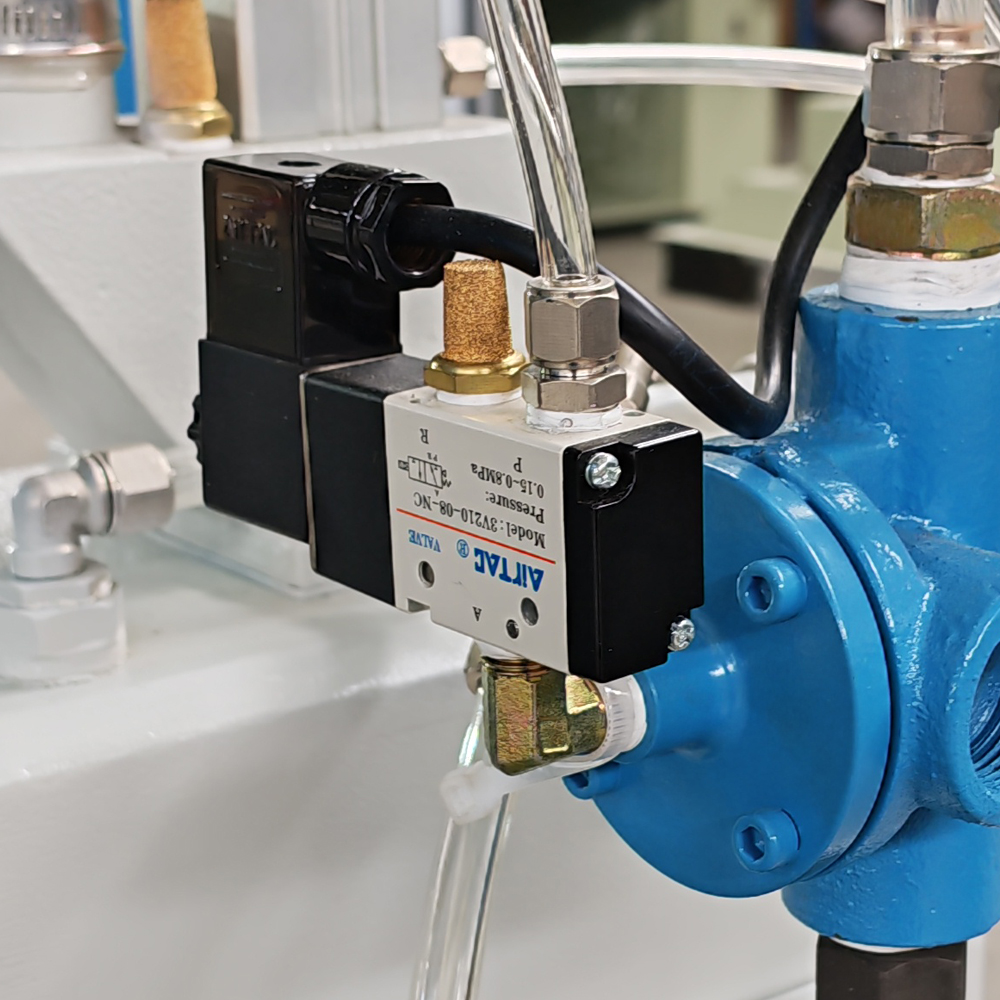

3. Sand shooting: the sand shooting valve is opened and sand shooting starts;
4. Heat curing: enter the box and retreat, heat curing;
5. Mold opening: move the movable template upward, push the core, and take the core;
6. Push mold: push out from the template, push the core, and take the core.
No. | Items | DLZS3828S | DLZS5050S | DLZS6060S | DLZS8080S | |
1 | Max. Weight For Core Box | 3.2kg×2 | 5kg×2 |
5kg×2 | 15kg×2 | |
2 | Max. Size of Mold (L×W×H) | 380×280×200mm | 500×500×250mm |
600×600×250mm | 800×800×500mm | |
4 | Ejector Stroke From Left To Right | 125mm | ≤250mm |
≤250mm | ≤250mm | |
5 | Max. Stroke of Vertical Mold Closing | ≤300mm | ≤450mm |
≤450mm | ≤700mm | |
6 | Heating Power | 8kw | 15kw | 16KW | 37kw | |
7 | Net Weight | 600kg | 860kg | 1225Kg | 3000kg | |
8 | Machine Dimensions (L×W×H) | 1960*700*2235mm | 1960*700*2235mm | 2030×1820×2260mm | 2570×1285×3100mm | |
9 | Remark: front or back core-pulling could be installed according to customer’s requirement. | |||||

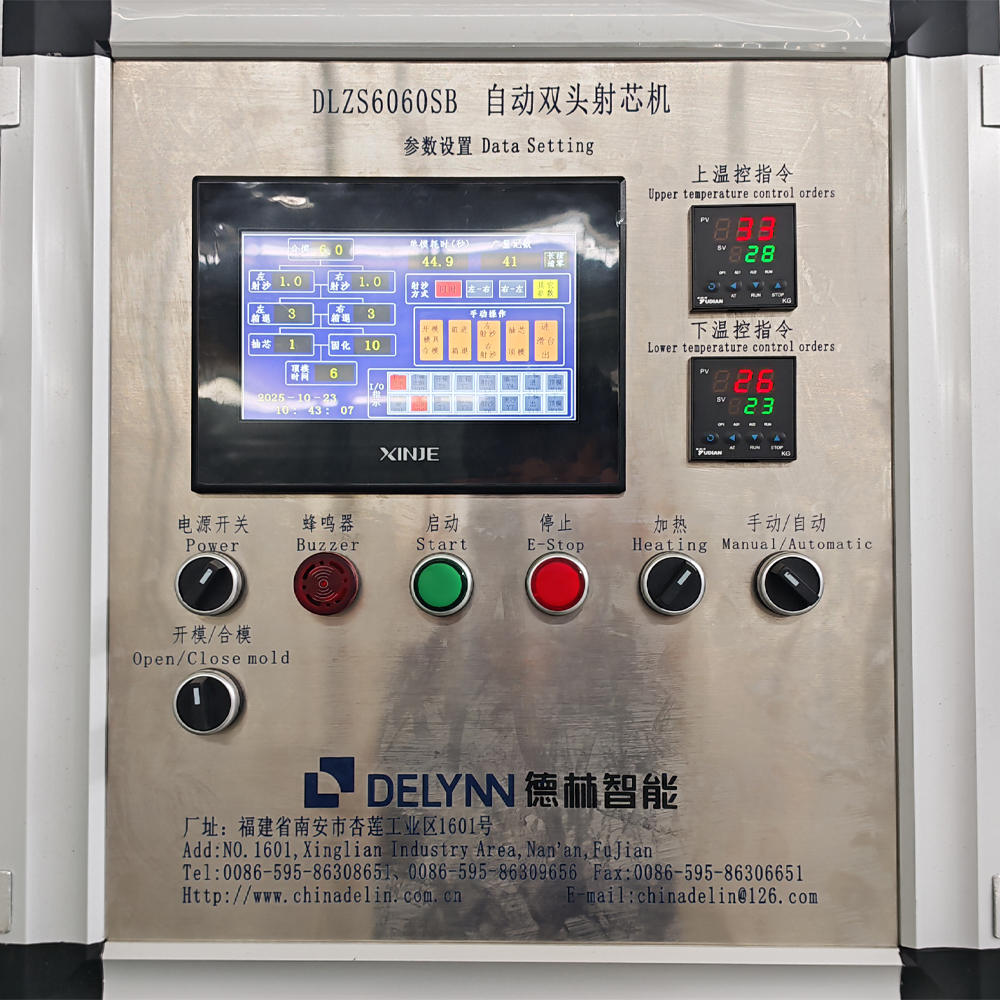

The automatic double-head core shooter is a hot core box core shooter that integrates mechanical, pneumatic and electrical control. It is mainly composed of frame, mold clamping, outer cover, leaking sand into the box, pneumatic control, electric control, and machine identification It consists of 7 subsystems.
