Gantry Type Low Pressure Casting Machine

Share to:

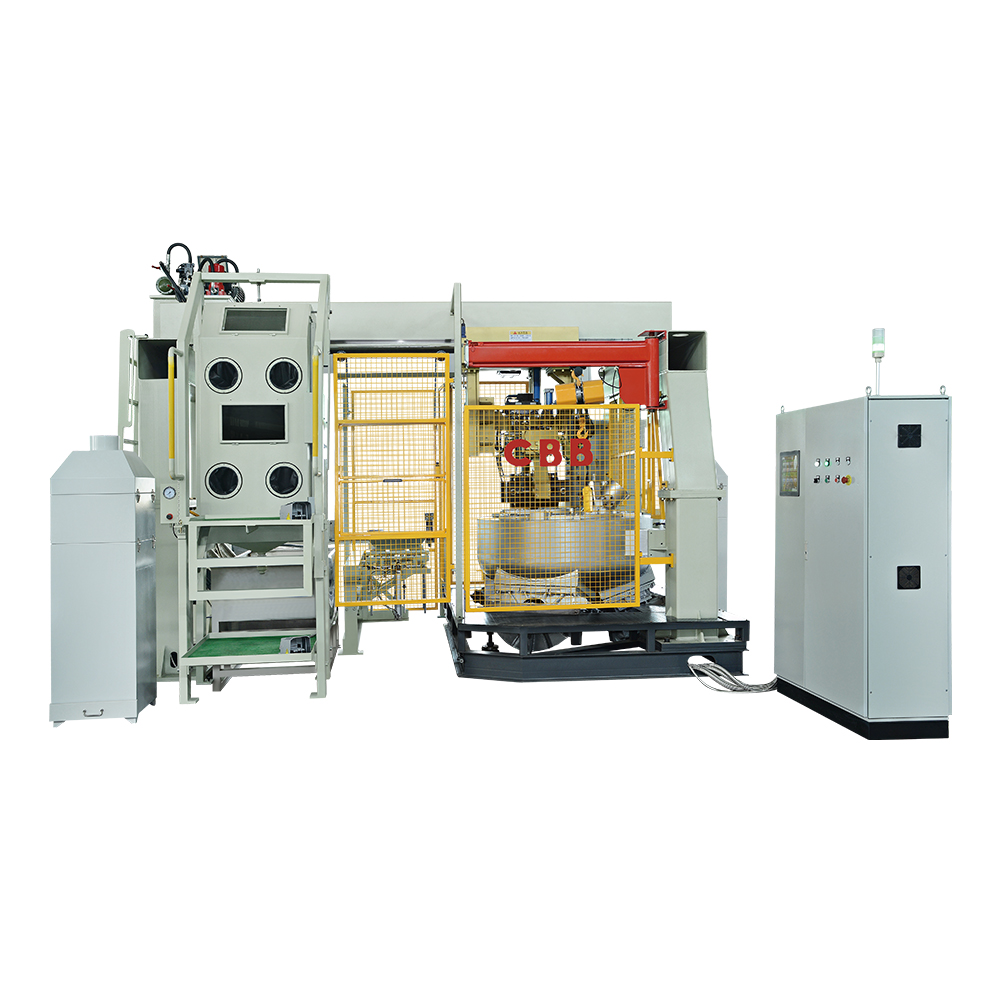

Gantry Type Low Pressure Casting Machine

Availability:

Quantity:



Inquire Add to Basket

Model:
CJRD-5042
Brand:
CBB

Product Description

龙门式低压铸造机 ·Application: casting of copper alloy & zinc alloy products.

·Main structure: composed of the main engine, furnace,feeder machine, graphite tank, mold washing chamber, chain block and control system, hydraulic system, casting system and pneumatic system.

·The control system adopts Siemens PLC control, and the lateral movement of the robotic arm is driven by servo, with fast speed, stable performance, and high control accuracy.

·The furnace has a capacity of 1.8T, a melting rate of 350kg/h, and it is equipped with stepless power and pressure regulation. Each induction coil and water jacket cooling water have flow and water pressure detection.

·Feeder machine: can turn back and forth, up and down, or overturn. Can deliver products directly to the storage cart.

·Mold washing chamber: when there is a large amount of oxide in the mold, it can be automatically moved to the mold washing bin for cleaning.

·Motor calabash: it can effectively lifting 500kg,mainly used to lift the cover when cleaning furnace.

·Graphite tank：with constant temperature and graphite stirring function.

·The hydraulic system adopts the combined of international brands, such as SUN, REXROTH, YUKEN, etc. It is a professional component with stable performance, good pollution resistance, suitable for running water hydraulic oil.

·Furnace casting system: composed of NORGREN and FESTO brand pneumatic components. Proportion controlled pressure and double safety valve protection, ensuring quality and security of casting.

·The Chinese (English) display touch panel can sets various functions and parameters, which is easy to operate and has a fault code display function for easy maintenance.

The main technical parameters

No.	Item	Parameter
1	Machine size	500046003400mm
2	Power	120kw（铜合金 Copper alloy）
3	Rated voltage	380V
4	Max.mold weight	180kg
5	Max. mold size	500400250mm
6	Furnace power	3*35kw
7	Number of riser pipes	3
8	Air pressure	6kg
9	Water source pressure	3kg

Our Service:

We have strict management system,complete quality guarantee system and fine pre-sale and after-sale service system.

1.Pre-sale Service System

Please do not hesitate to contact with us If you are interested in machine. We can design the machine you requirements.

2.After-sale Service System

24/7 on line,including mobile/wechat/whatsapp etc. Our technician is available to visit and go to your place,and they will help your side for installation,maintenance,and training.

3.Payment

30% Deposit by TT,and The rest 70% by photos or you can check the quality on our factory before they shipment.
