| Quantity: | |
|---|---|

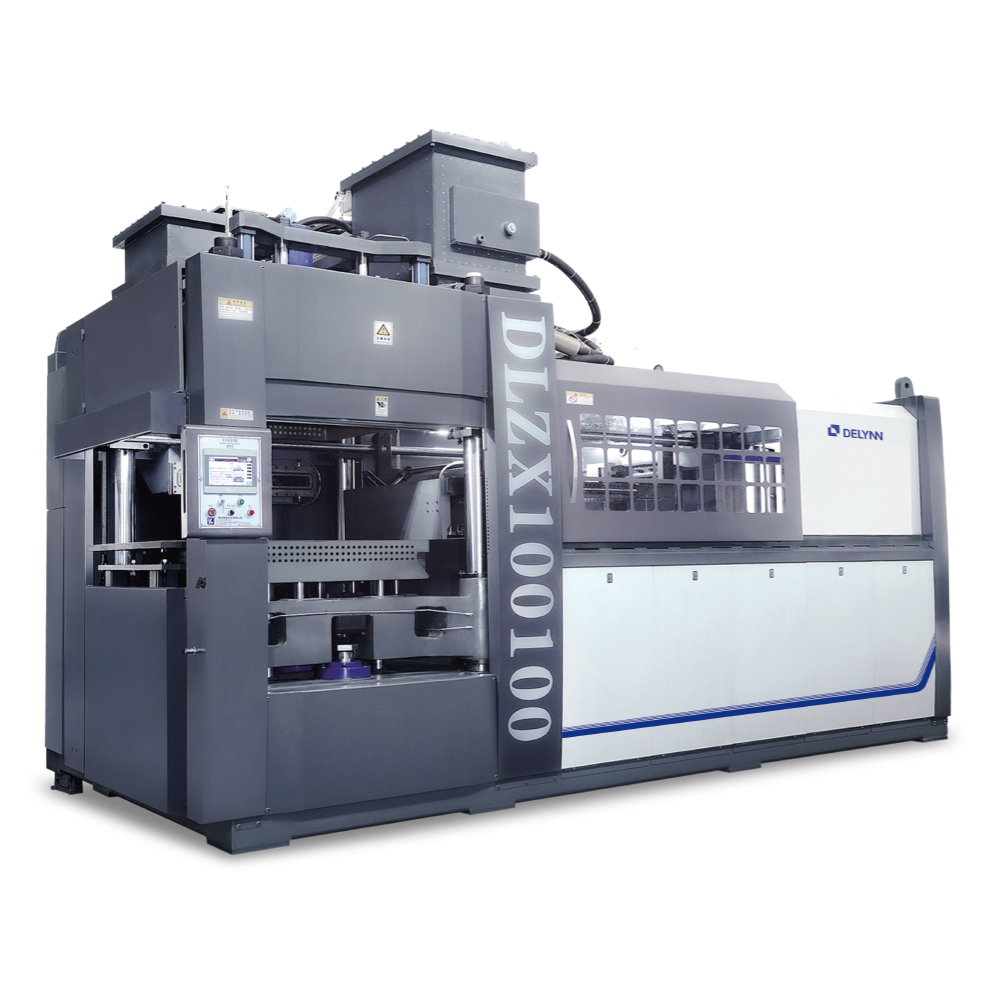

DLZX100100
Delin
Technical Parameter:
No. | Items | DLZX100100 |
1 | Mold dimensions(L×W) | 1000×1000mm |
2 | Thickness of sand mold | Up:160-240mm Down:160-240mm |
3 | Molding sped(s/mold) | 46s/mold (without the time for sand core loading) |
4 | Squeeze pressure | ≤25Mpa |
5 | Air consumption | 1.5m³(Normal) |
6 | Humidity of sand mold | 3-4% |
7 | Drive method | Electric-pneumatic-hydraulic |
8 | Thickness of template | 100mm |
9 | Power supply | AC380V,50Hz |
10 | Total power of the machine | 50KW |
11 | Net weight | 30T |
12 | External dimensions (L*W*H) | 6170*3400*4300mm |
Technical Characteristics:
1.The equipment has good stability, low energy consumption and long service life.
2.High degree of automation, simple and convenient operation and high labor productivity.
3.The independent sealed control system is adopted, and the parameter storage is intelligent. Easy to check the faults and easy to operate. The low maintenance cost.
4.The imported servo hydraulic system is adopted, the equipment runs smoothly, with high precision and low noise, and comes with oil temperature and air cooling function, which is energy-saving and environment-friendly.
5.The upper and lower boxes adopt separate sand blasting system, and various sand blasting methods can be selected. The sand type has good compactness.
Output Product Analysis:
Molding production of sand molds for castings such as ductile iron, gray cast iron, malleable steel, non-ferrous metals, such as valves, bearing seats, pulleys, pump bodies, hydraulic parts, pipe fittings, agricultural machinery parts, stove parts, machinery and auto parts.
Our Service
We have strict management system,complete quality guarantee system and fine pre-sale and after-sale service system.
1.Pre-sale Service System
Please do not hesitate to contact with us If you are interested in machine. We can design the machine you requirements.
2.After-sale Service System
24/7 on line,including mobile/wechat/whatsapp etc. Our technician is available to visit and go to your place,and they will help your side for installation,maintenance,and training.
3.Payment
30% Deposit by TT,and The rest 70% by photos or you can check the quality on our factory before they shipment.
