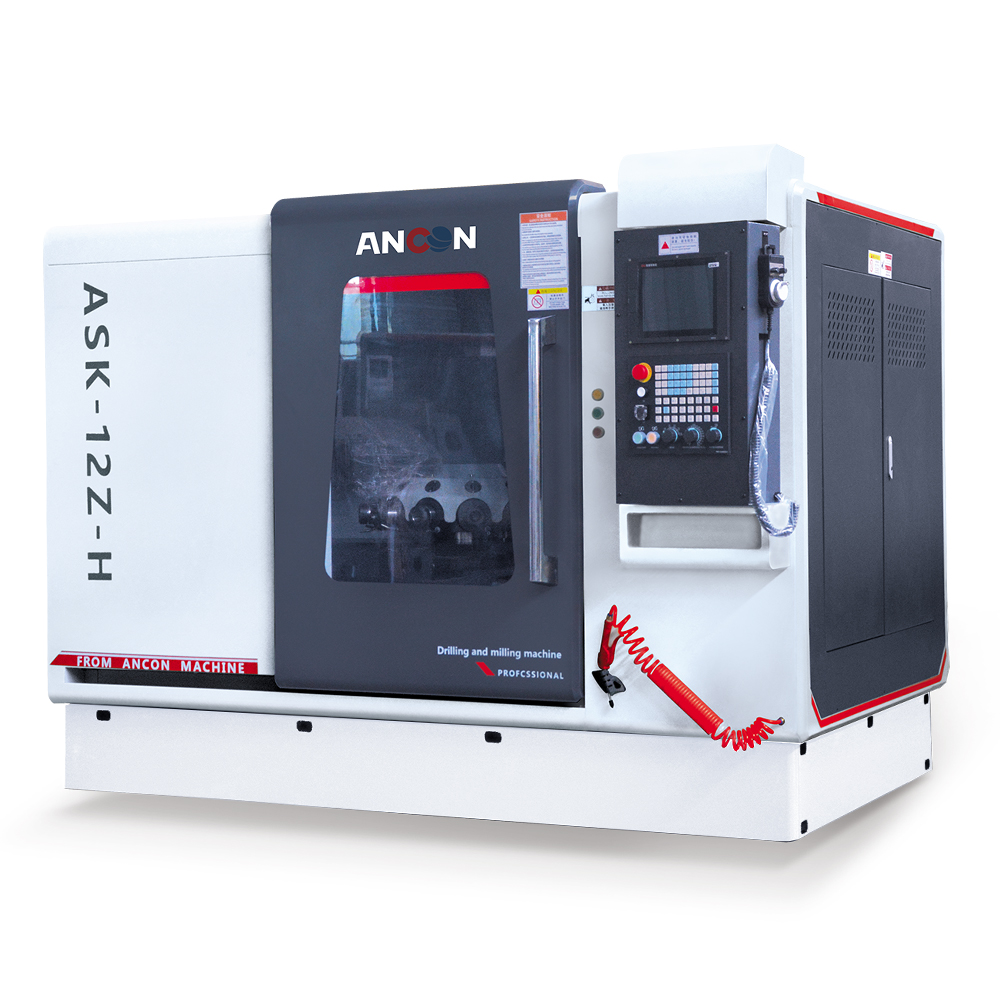

ASK-12Z-H
Ancon
Technical Parameter:
| Item | Unit | Parameter | |
| Maximum reaming capacity | Drilling diameter | mm | φ50 |
| Maximum tapping capacity | Tapping diameter | mm | M45 |
| Spindle number | Spindle numbers | unit | 8/12 |
| Processing range | Stroke distance of X/Y/Z axis | mm | 450/250/400 |
| Workbench | Workbench length and width | mm | 150×85 |
| Spindle | Spindle form | __ | ER40 |
| Rotating speed | r/min | 10-3000 | |
| Spindle motor power | kw | 5.5 | |
| Motor power of X/Y/Z axis | kw | 1.5/2.0/2.0 | |
| Precision | Positioning accuracy | mm | ±0.01/300 |
| Repested precision | mm | ±0.01 | |
| Machine specifications | Machine dimensions (LxWxH) | mm | 2380×1620×1850 |
| Machine weight | kg | 3000 | |
| Feed sped | Maximum fast feed rate | m/min | 20 |
| Maximum cutting feed rate | m/min | 12 | |
| Control system | Taiwan's syntec system (optional) | ||
Technical High Lights:
1.The machine adopts standard CNC control operating system, which is versatile and easy to operate.
2.The whole machine adopts international HT250 castings to ensure high rigidity and stability of the equipment.

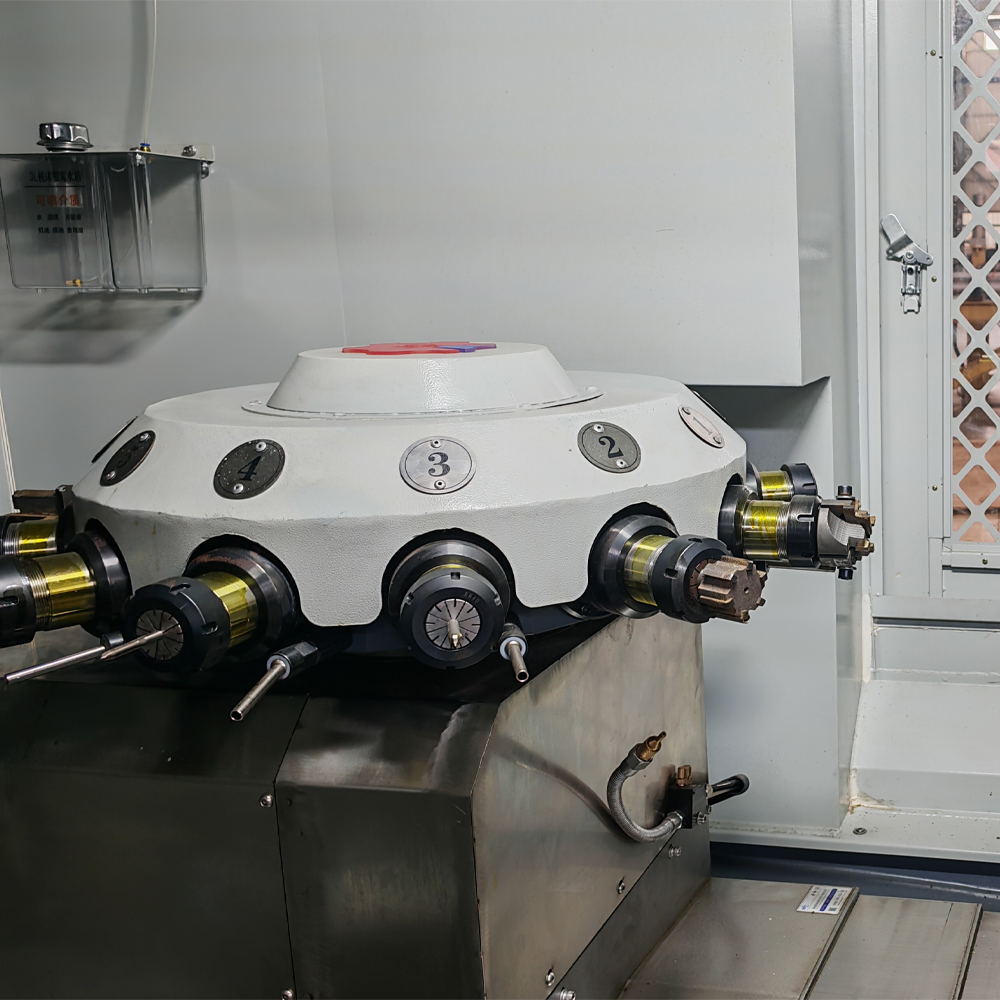

3.It is convenient to adjust the machine, effectively reducing the time for workpiece replacement and debugging. Up to 12 tools can meet the processing needs of different products, and realize multi-faceted drilling, tapping, milling and other processing in one clamping.
4.Humanized appearance design, simple and elegant, fully enclosed sheet metal is effective in waterproofing and chipproofing.
The predecessor of Ancon Automation is a professional manufacturer dedicated to serving plumbing and sanitary ware, fire valves, door control hardware, home appliance hardware, automobile and motorcycle accessories and other industries to provide it with efficient, accurate, and labor-saving automated processing equipment.In 2013, Delin Intelligent Technology Co., Ltd. invested a huge sum of money to acquire holding Ancon automation, pushing Ancon automation into a brand-new field in various aspects such as technology research and development, supply and production, brand promotion and marketing.
Our Service:
We have strict management system,complete quality guarantee system and fine pre-sale and after-sale service system.
1.Pre-sale Service System
Please do not hesitate to contact with us If you are interested in machine. We can design the machine you requirements.
2.After-sale Service System
24/7 on line,including mobile/wechat/whatsapp etc. Our technician is available to visit and go to your place,and they will help your side for installation,maintenance,and training.
3.Payment
30% Deposit by TT,and The rest 70% by photos or you can check the quality on our factory before they shipment.
