CJPQ150
CBB
·This equipment is a device that breaks up the molding sand through rotation and collision to separate the product blanks. It is widely used in auto parts valves, hardware bathrooms, faucets, cast iron, cast copper and other fields;

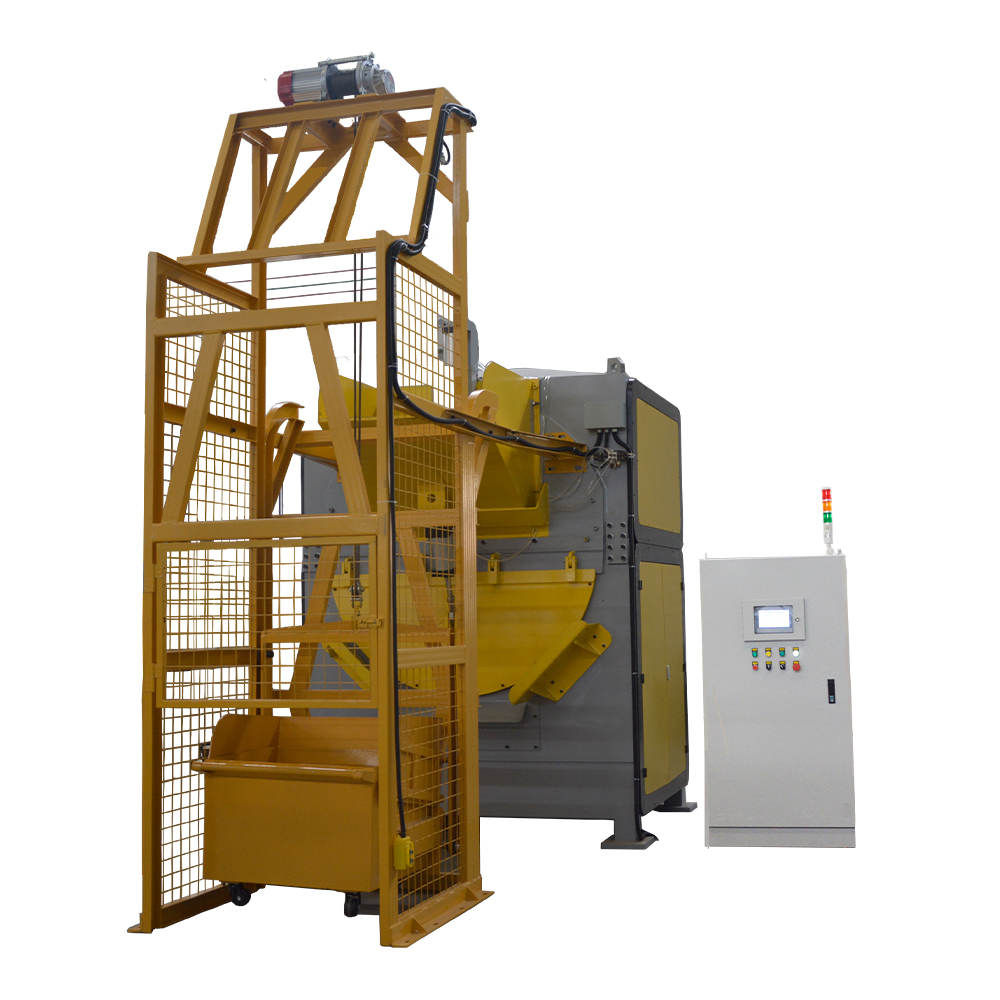

·The drum sand cleaning machine is mainly composed of material truck elevator, sand cleaning drum, vibrating screen, and conveyor belt. Implementing automation of material lifting dumping, tumbling, discharging, fine sand collection and metal fragment screening, replacing workers' heavy physical labor.

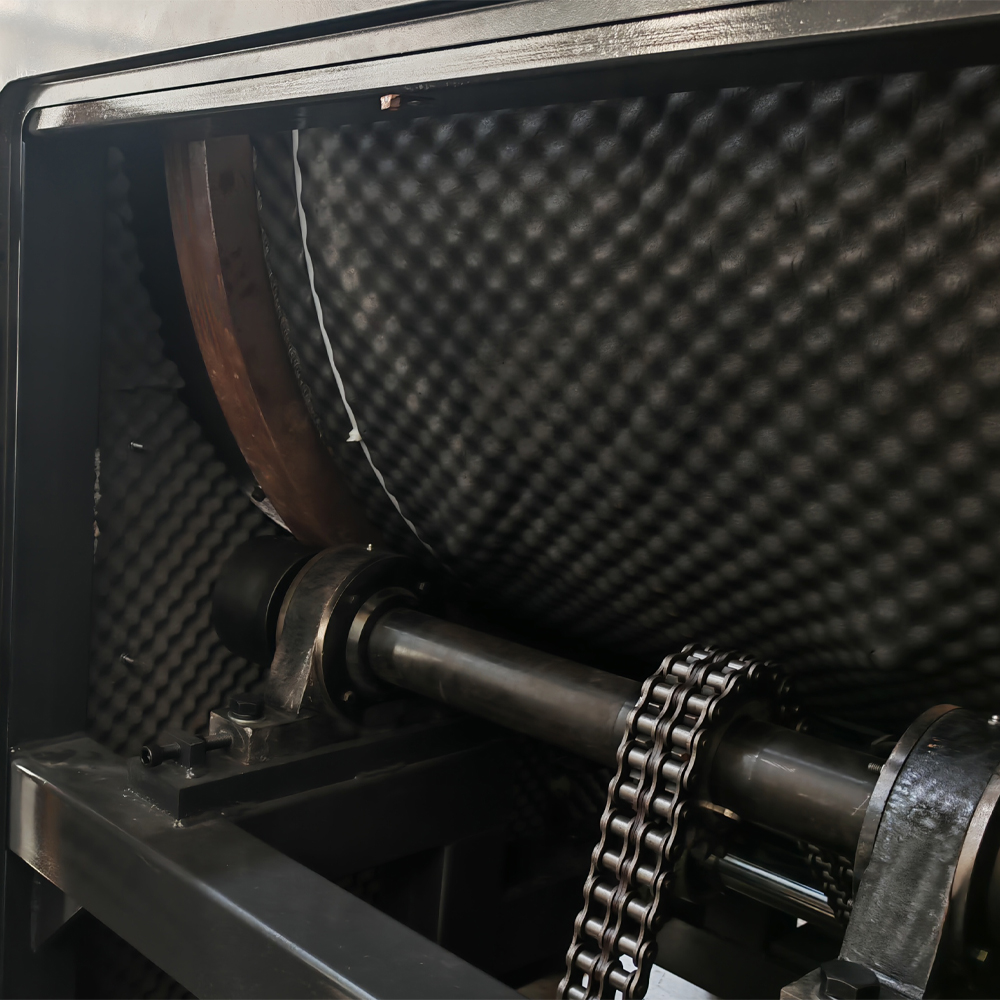

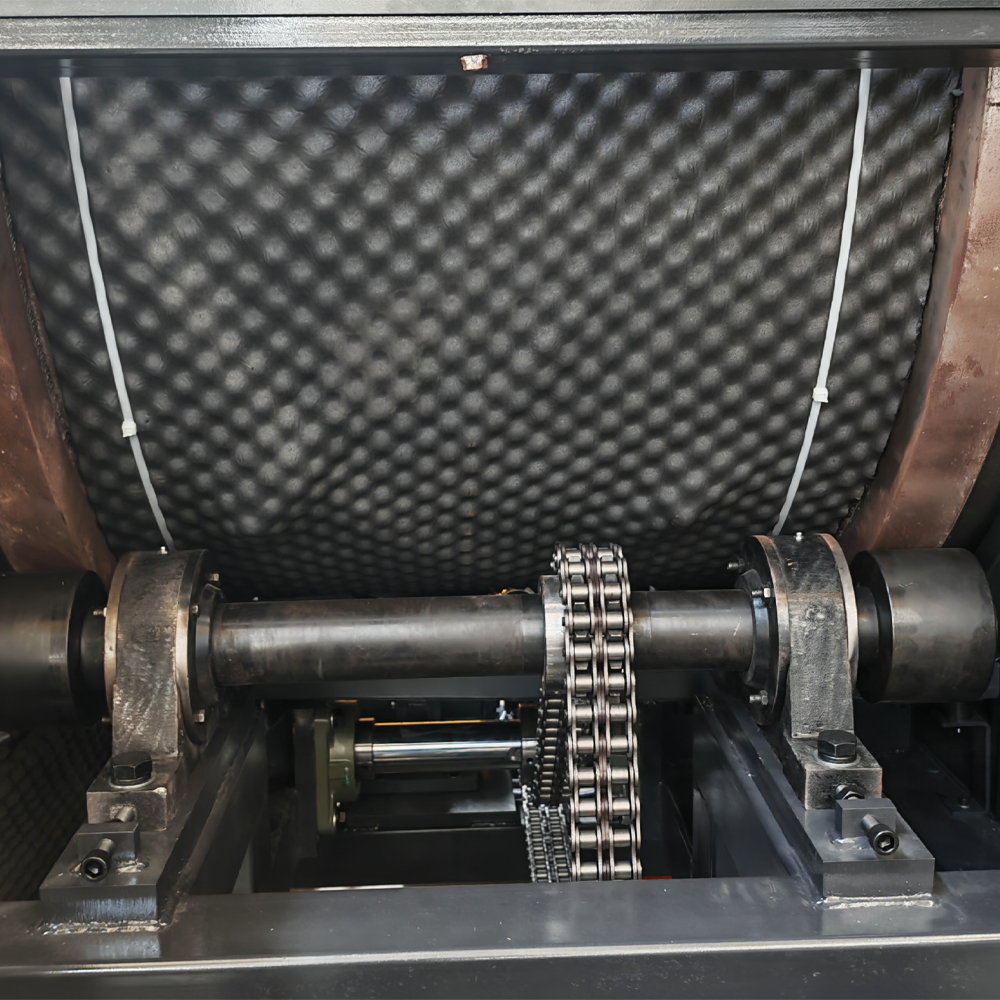

·The outside of the drum is designed with a fully enclosed sheet metal seal, and has a silencer and dust removal pipe connection design, which is environmentally friendly.
·The pit-free trailer-type elevator feeding method is adopted. The material truck is directly hung on the elevator. It is manually controlled. The material truck automatically flips and empties the material when it rises, which can can avoid secondary dust during material transfer. It is easy to operate and operates safely and stably.
The main technical parameters
No. | Item | Parameter | |
1 | Drum sand cleaning machine | Drum inner diameter | 1430mm |
Loading weight( easy to roll parts) | 750kg | ||
Rolling speed | 5r/min | ||
Power of motor | 7.5Kw | ||
Each cleaning time( adjustable) | 3-15min The specific work-pieces are different | ||
Feeding method | The pit-free hanging car type hoist | ||

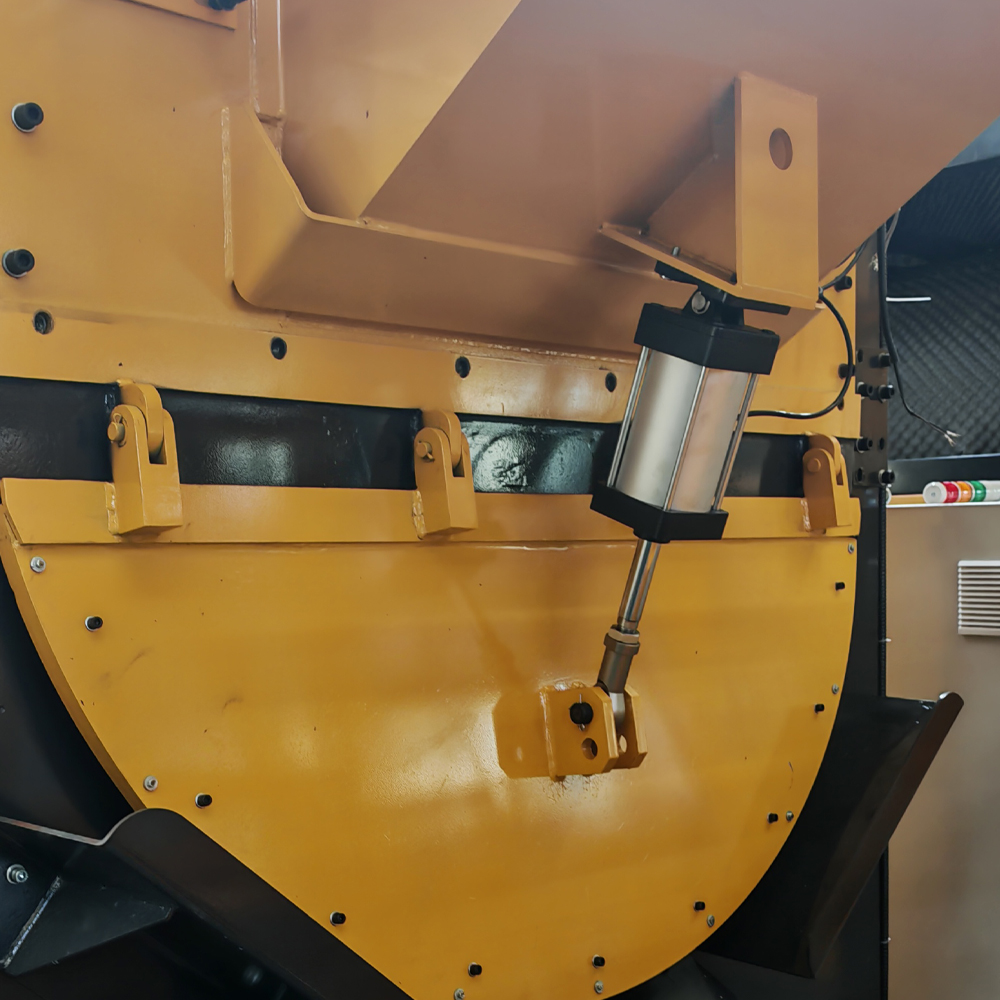

Discharging method | The roller reversal | ||
Dust removal power | 5.5kw | ||
2 | Feeding elevator | Hoisting height | 2.3m |
3 | Vibration sieve | Vibration motor power | 0.75kw 10000N |
4 | Belt conveyor (Optional) | Belt width | 500mm |
Power of motor | 2.2kw | ||
Belt speed | 30m/min | ||
5 | Machine size | 5500*2070*4000 | |
6 | Machine weight | 6000kg | |
Fujian Changjiang Industrial Co., Ltd. was established in February 2007 and is a subsidiary of Delin Intelligent Technology Co., Ltd. It is a high-tech enterprise specializing in R&D and manufacturing of high-end technical equipment such as robots and numerical control intelligent automation equipment in the production field.
Our Service:
We have strict management system,complete quality guarantee system and fine pre-sale and after-sale service system.
1.Pre-sale Service System
Please do not hesitate to contact with us If you are interested in machine. We can design the machine you requirements.
2.After-sale Service System
24/7 on line,including mobile/wechat/whatsapp etc. Our technician is available to visit and go to your place,and they will help your side for installation,maintenance,and training.
3.Payment
30% Deposit by TT,and The rest 70% by photos or you can check the quality on our factory before they shipment.
