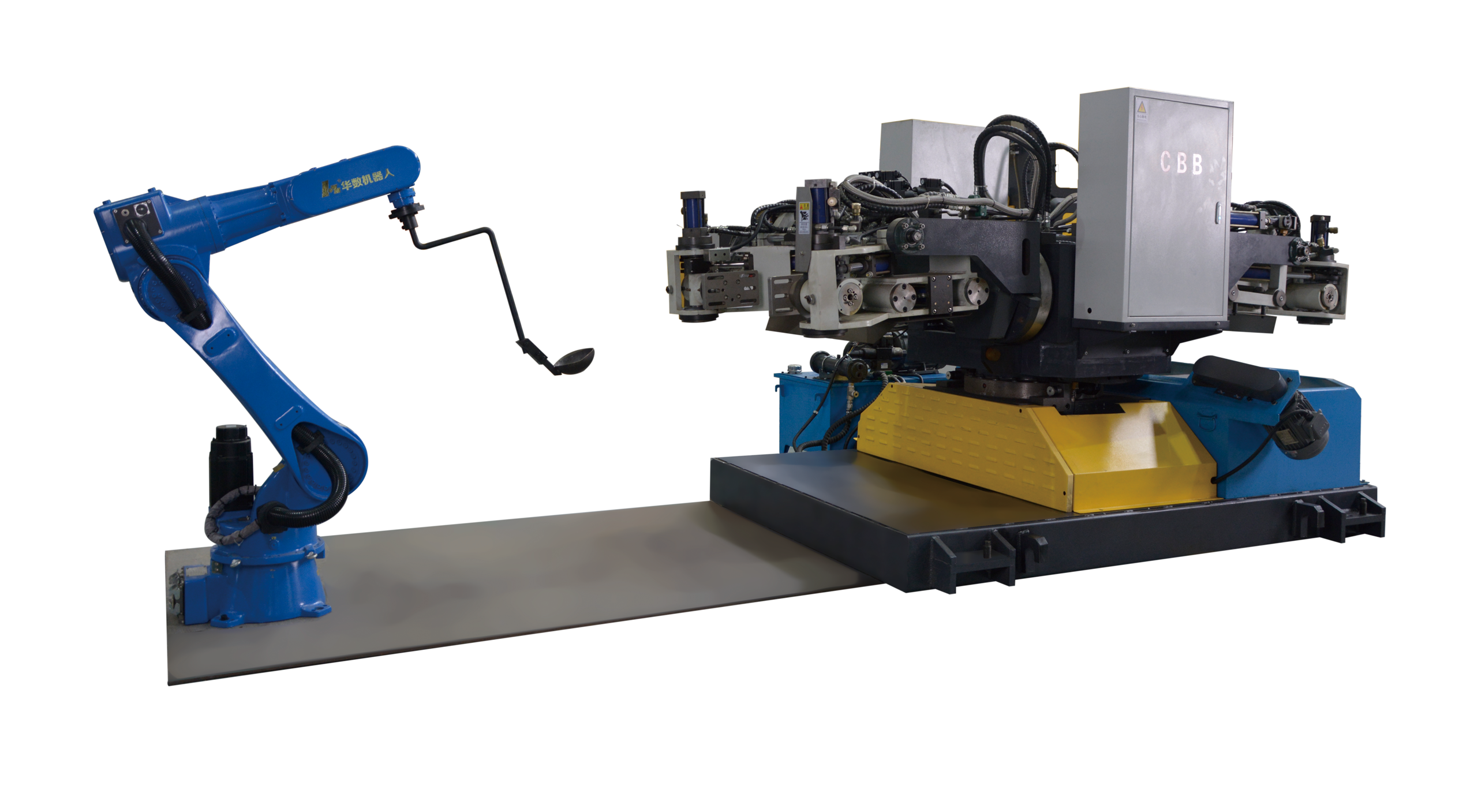

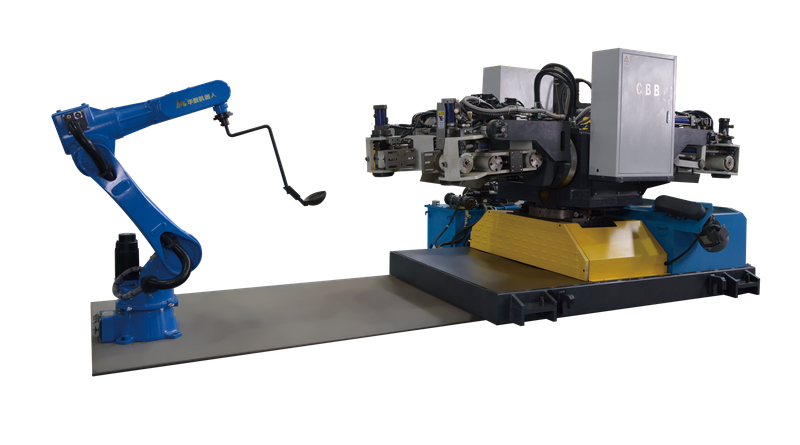

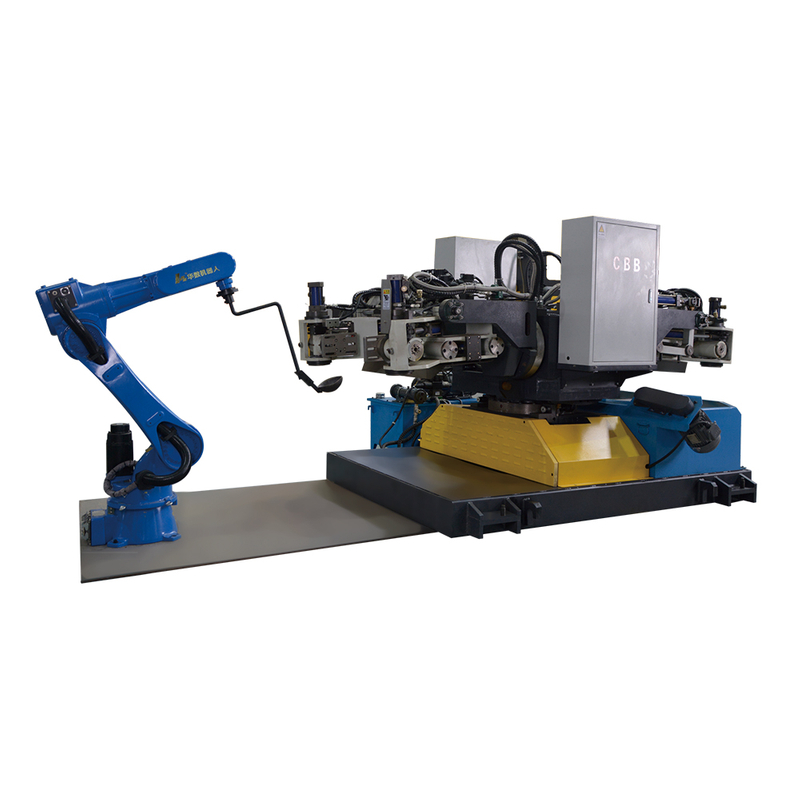

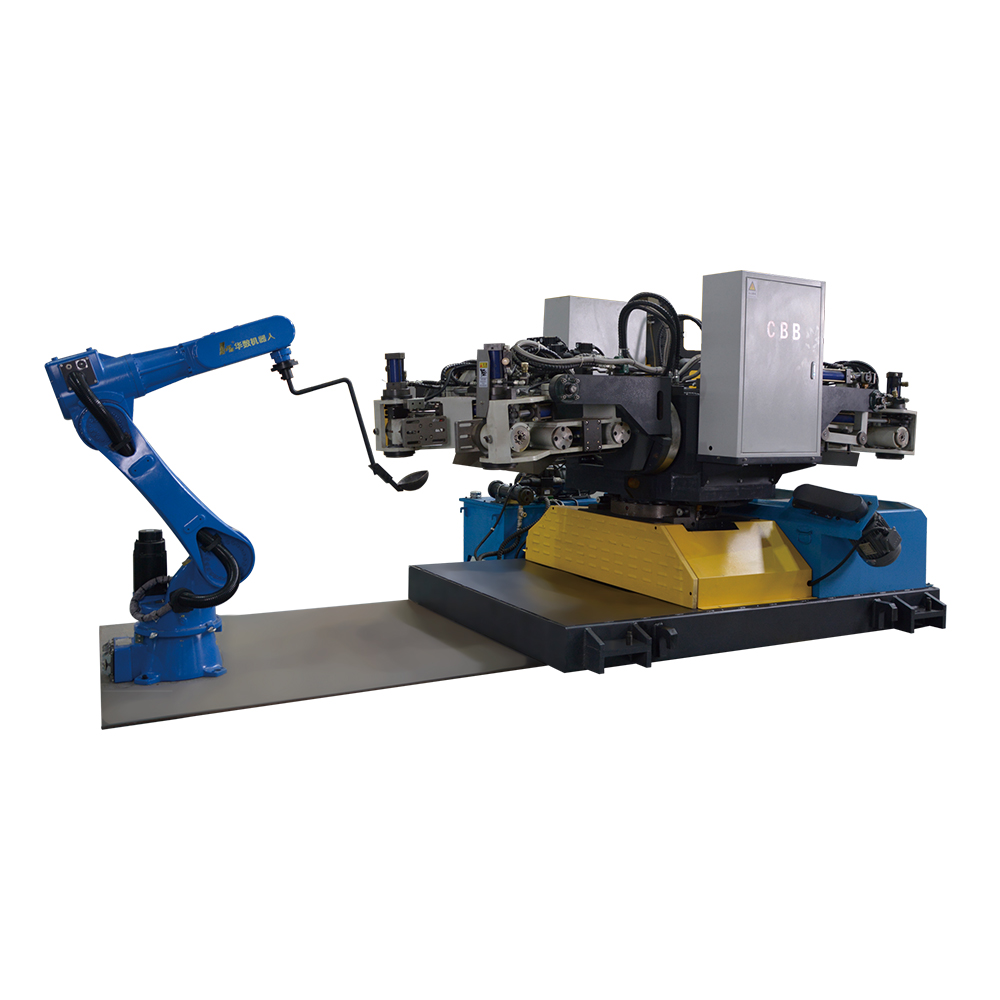

The circuit is controlled by PLC, and the data is set using touch screen display. All hydraulic components are imported.
Gravity casting suitable for copper alloys.
Can adjust the cooling time of the mold.
Facilitate the disassembly, assembly, and cleaning of molds.
It has two functions of manual and automatic circulation, and can preset a counter to record the number of production pieces on duty.
There is a mold adjustment space, which facilitates the configuration of different molds and reduces the requirements for the external dimensions of the molds.
The sand core position and casting position can be operated separately, which can be carried out simultaneously, greatly improving production efficiency.
2、Electronic Control System
Adoped PLC system and touch screen operation panel.
The system is equipped with automatic, semi-automatic, manual and other functions to achieve flexible control of the machine.
Can achieve system parameter settings, casting pressure curves, etc.
No. | Item | Parameter |
1 | Servo Axes | 4-5 axes |
2 | Stations | Single stations |
3 | Max Pat Available | 400*400"250MM |
4 | Saw blade type | Alloy Steel circular saw |
5 | Saw size | 300-500mm |
6 | Part pressed method | Pneumatic |
7 | Motion controller | Panasonic 松下PLC |
8 | Teach pendant | Delta 7”robot teach pendant |
9 | Human interface | Dela 14”Industry touch screen |
10 | Cutting precision | 0.5MM |
11 | Power supply | AC380/200V,50-60Hz |
12 | Air supply | 0.4-0.8Mpa |
13 | Machine dimensions | (L)2500*(W)2400*2750MM |
14 | Net weight | 3500kg |
