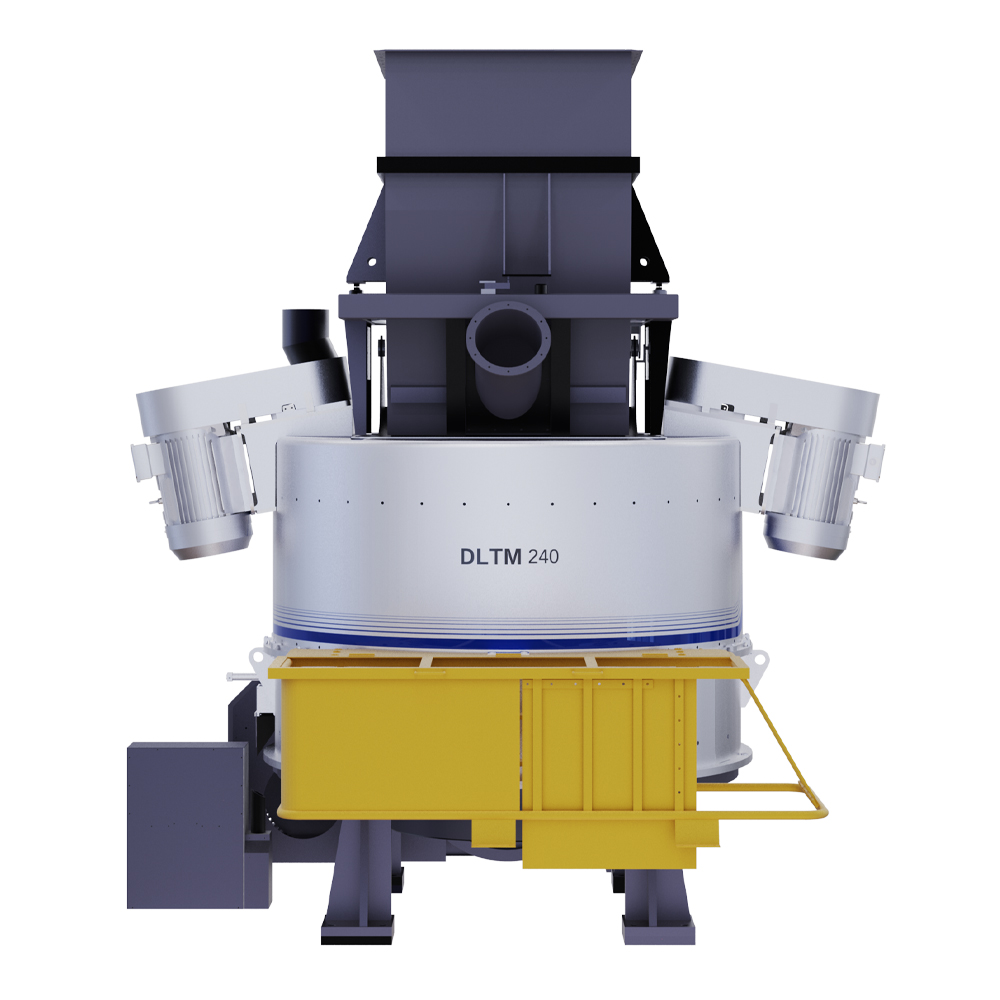

Efficient Rotator Sand Mixer

1.Adopt foreign advanced design, configure high-efficiency high-speed rotor to improve the effect of bentonite, special gear transmission, high effective power and reduce energy consumption;
2.Ceramic wear-resistant bottom plate, ceramic wear-resistant side plate, cast iron finishing chassis, fully machined cylinder wall and central bearing chamber;
3.The double S-shaped bottom scraper and the bottom scraper have a small gap with the side plate (no hard lumps and no delamination in sand mixing);
4.Equipped with imported bearings, YG8 welding alloy cutter head and carbide alloy surfacing material for long service life;
5.Metered addition of used sand, new sand, auxiliary materials and water.
Availability:
Quantity:
  • TM190-75/TM240-90/TM240-110/TM285-160/TM285-200

  • Delin

微信图片_20221018165416_1905_1905



Technical Parameter:


No.

Items

M190-75

M240-90

M240-110

M285-160

M285-200

External dimension(mm)

1

Diameter

1950

2460

2460

2900

2900

2

Rotor drive extension length

710

730

730

700

800

3

Height of sand mixer

2080

2405

2405

2480

2480

4

Height of weight hopper

1750

1600

1900

1950

2250

5

Center width of weight hopper

860

1200

1200

1500

1500

6

Center distance of sand mixer/weight hopper

300

400

400

450

450

7

Main drive extension width

2100

2450

2550

2800

3000

8

Main drive extension length

1650

1850

1850

1950

2000

9

Sand bucket extension l

1470

1975

1975

2330

2330

Charging

1

Qty of batch feeding(KG)

1000

1400

1850

2500

3200

2

Mixing time(s)

100

100

100

100

100

3

Sand mixing qty./hour

36

36

36

36

36

4

Sand mixing qty.(m³/h)

40

56

75

100

130



36 t/h

50 t/h

66 t/h

90 t/h

115 t/h

5

Available capacity of weight hopper(m³)

1.0

1.4

1.8

2.5

3.1

6

Available capacity of auxiliary hopper(m³)

0.1

0.15

0.15

0.15

0.15

Sand mixer

1

Drive power(KW)

75

90

110

160

200

2

Sand mixing qty.(KWh/t)

2.1

1.8

1.65

1.8

1.75

High speed rotor

1

Drive Power(KW)

1/37

1/45

2/45

2/55

200

2

Sand mixing qty.(KWh/t)

1.0

0.9

1.35

1.0

0.95

Total installed power

1

Total drive power(KW)

112

135

200

250

310

2

Sand mixing qty.(KWh/t)

3.1

2.7

3.0

2.8

2.7

3

Weight(KG)

6700

12400

13200

16900

17000


Advantages:

1.Stable,low power consumption,and long lifetime.
2.Automatic lubrication system.
3.Highly standardized,good parts interchangeable,fast and low-cost maintenance.
4.Automatic spraying water for feeding,which makes sand moulds better.
5.Using case-hardened surface reducer.
6.Rotor and scraper are made of alloy.
7.Random sampling mechanism(online detection is optional).
8.Stainless steel inner ring and greenstone casting board.


Our Service:

We have strict management system,complete quality guarantee system and fine pre-sale and after-sale service system.

1.Pre-sale Service System

Please do not hesitate to contact with us If you are interested in machine. We can design the machine you requirements.

2.After-sale Service System

24/7 on line,including mobile/wechat/whatsapp etc. Our technician is available to visit and go to your place,and they will help your side for installation,maintenance,and training.

3.Payment

30% Deposit by TT,and The rest 70% by photos or you can check the quality on our factory before they shipment.
