Product Overview

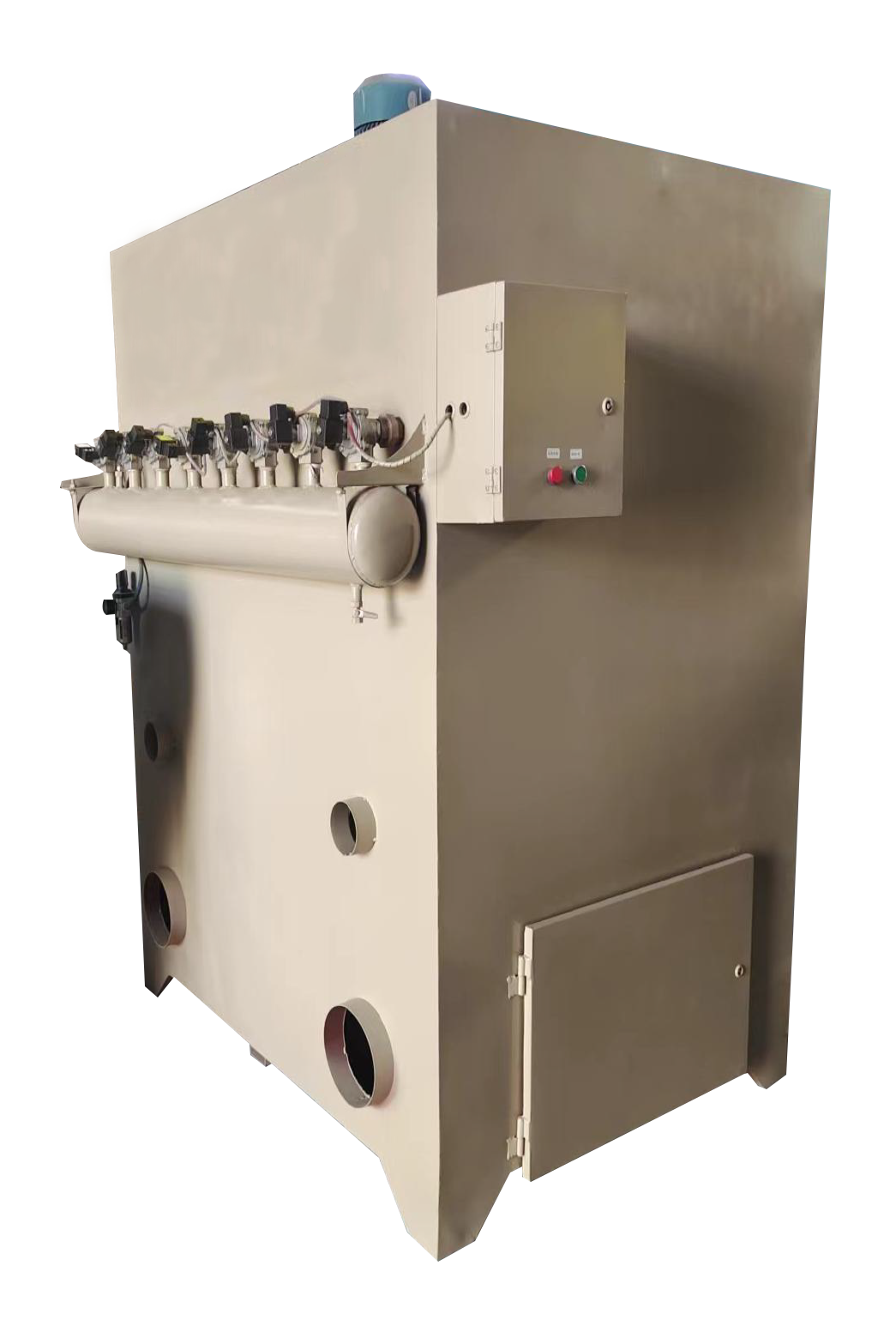

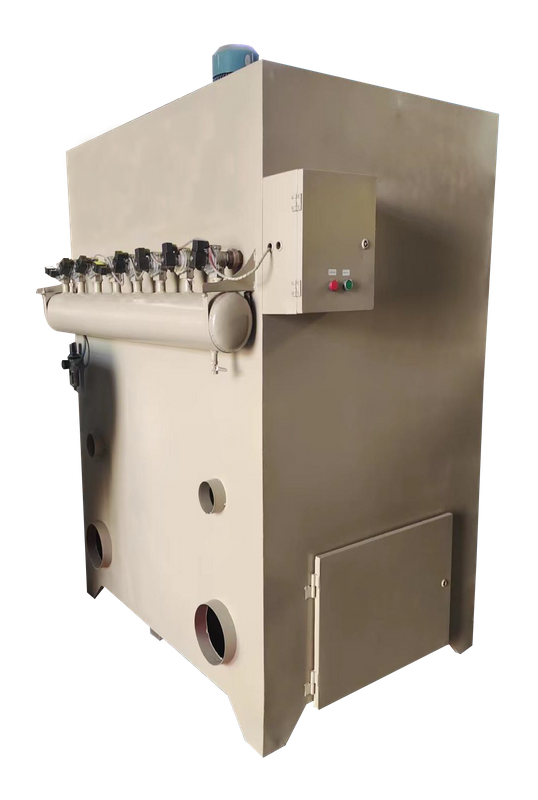

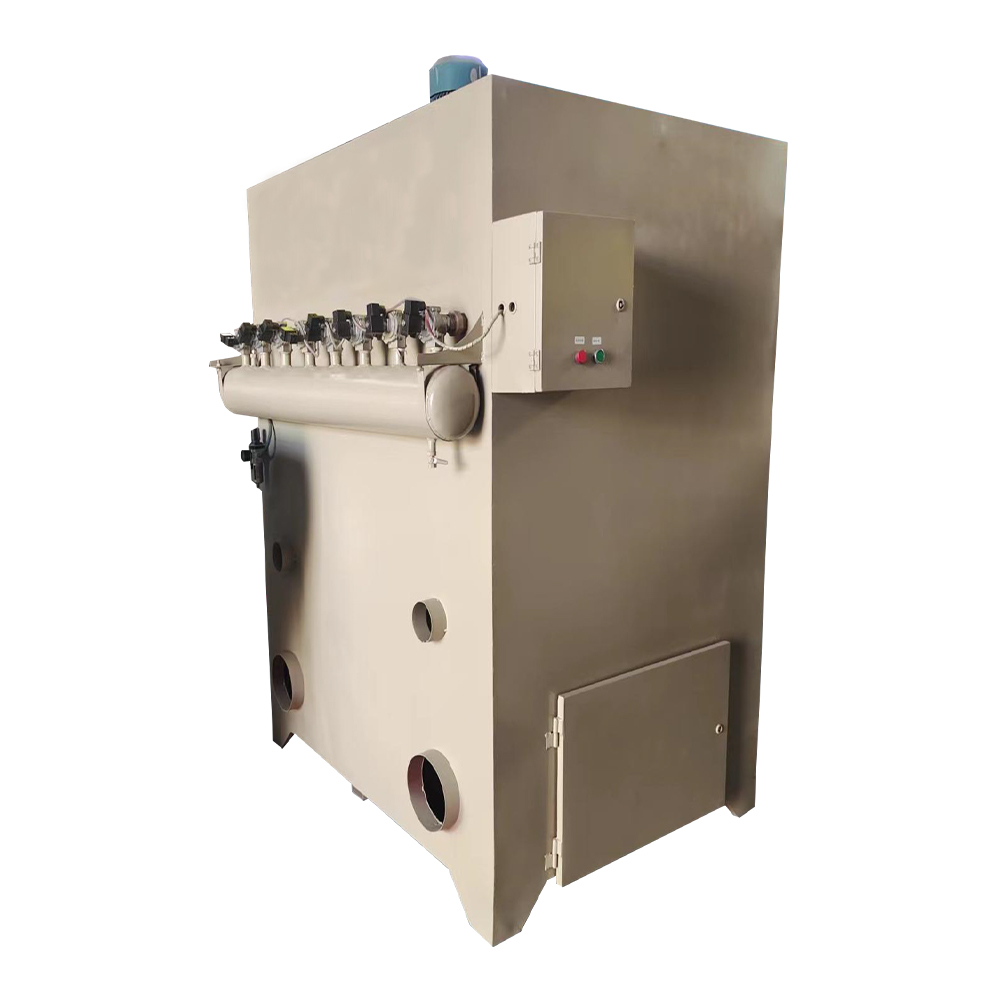

Model ZY-BD4K adopts bag-type dust removal technology. It features large air handling volume, low equipment resistance, convenient ash cleaning, high dust removal efficiency and low emission concentration. It is suitable for dust-laden gas purification and material recovery in industries including grinding & polishing, wood processing, metallurgy, rubber, flour, chemical, pharmaceutical, carbon, building materials, mining, electric power, cement, steel, etc.
Equipment Parameters
Material: Carbon steel plate
Overall dimension: 1000×1500×2250mm
Filter bags: 35 sets
Power: 3KW
Air handling capacity: 4000 m³/h
Suction ports: 2 pcs of φ200, 2 pcs of φ110
Air velocity at suction port: 23 m/s
Emission concentration: less than 15 mg/m³
