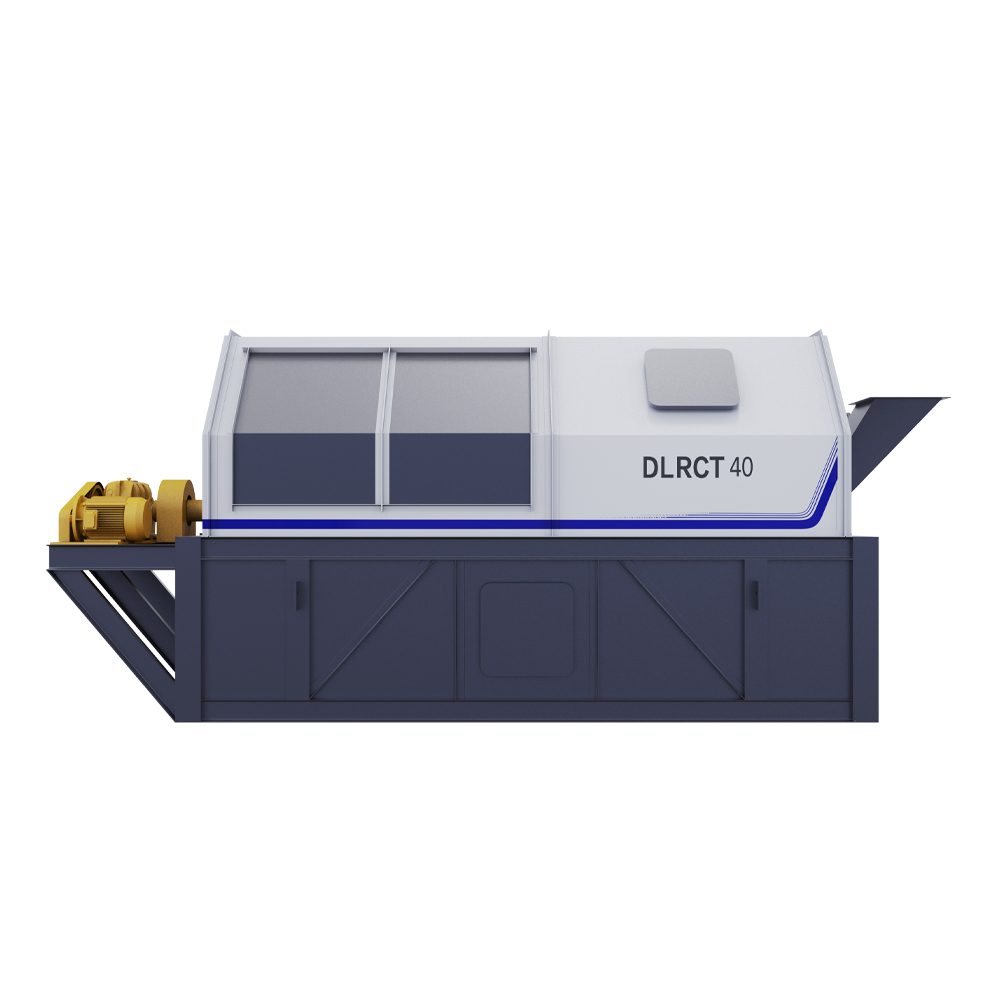

DLRCT-20/DLRCT-40/DLRCT-60/DLRCT-80
DELYNN
Technical Parameter:
NO. | Items | DLRCT-20 | DLRCT-40 | DLRCT-60 | DLRCT-80 |
1 | Max treating capacity | 20t/h | 40t/h | 60t/h | 80t/h |
2 | Size of outer roller | 2000mm | 2200mm | 2400mm | 2600mm |
3 | Size of inner roller | 1600mm | 1800mm | 1900mm | 2000mm |
4 | Length of roller | 4235mm | 4235mm | 5485mm | 5485mm |
5 | Rotating speed of roller | 20rpm | 20rpm | 21rpm | 21rpm |
6 | Power | 8kw | 11kw | 11kw | 15kw |
7 | Watering system | 9.6L/min | 9.6L/min | 2/9.6L/min | 2/9.6L/min |
8 | Dust removal air volume | 10000m³/h | 12000m³/h | 14000m³/h | 16000m³/h |
9 | Inner sieve | 304stainless steel/ 10*24*ϕ2.5 | 304stainless steel/ 10*24*ϕ2.5 | ||
10 | Outer sieve | 304stainless steel/ 5*24*ϕ2.5 | 304stainless steel/ 5*24*ϕ2.5 | ||
11 | Temperature for the inlet port | 80℃ | |||
12 | Temperature for the outlet port | 45℃ | |||
Technical Characteristics
1.With its own cooling function, the used sand with temperature difference between dry and wet is fully stirred and mixed in the drum section, and the temperature and humidity of the used sand are more stable.
2.It has a higher rotation speed than the cooling drum, and the higher rotation speed can achieve better stirring and surface area of the old sand, so the cooling efficiency is higher.
3.Smooth and noiseless operation
4.Low energy consumption, the old sand relies on gravity and its own deflector to do tumbling movement in the drum, does not rely on the blower to suspend, and does not rely on the scraper to force scraping, and there is almost no wear.

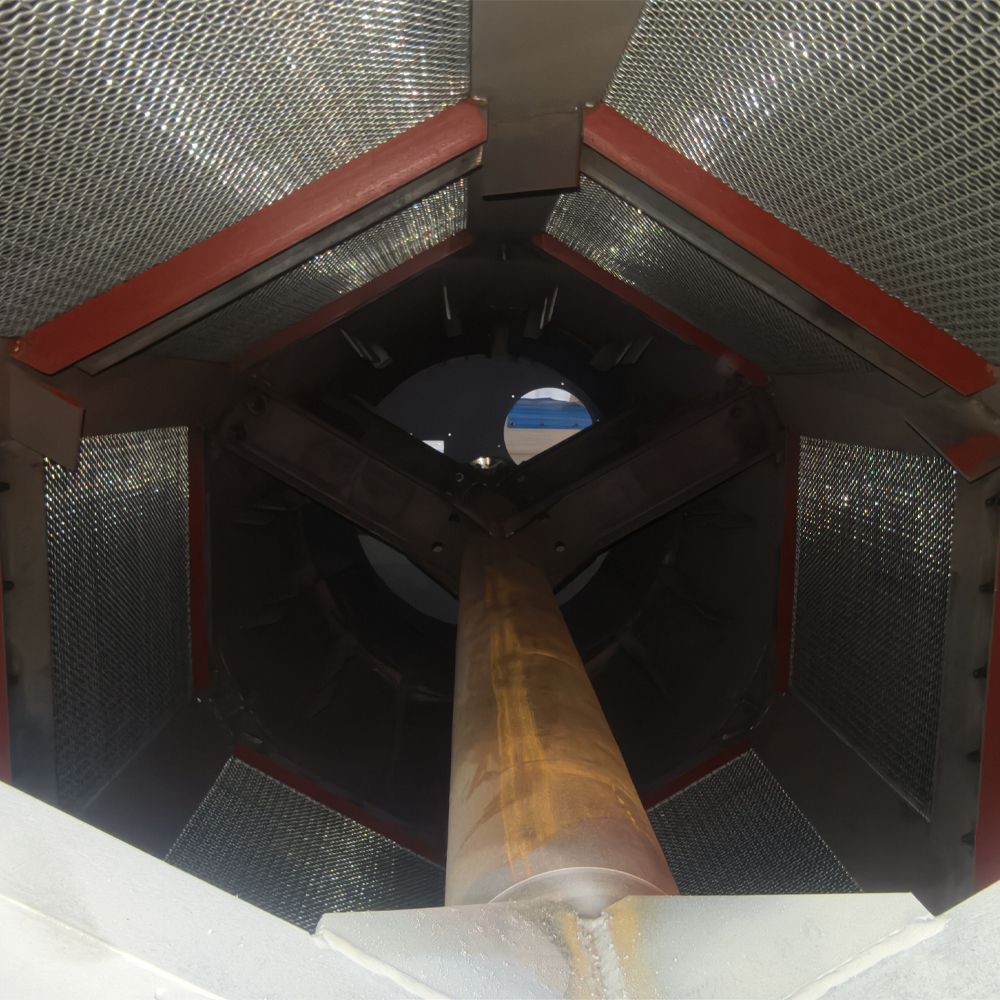

5.The double-layer screen can play a better role in crushing, and does not increase the amount of core sand entering;
Delin Intelligent Technology:
1.We are one manufacturer of metal foundry machinery and CNC machining machinery in China.
2.We are production automatic molding machine, gravity pressure casting machine, compound CNC polishing machine , SPM machine(compound CNC drilling machine,CNC machining center etc.), furnace, core shooting machine, mixing sand machine and so on.
3.Our machines are extensively used in producing and machining foundry parts,metal castings, plumbing fittings, sanitary ware,car spare parts,valve for brass, aluminium, zinc, iron cast production line and others please contact us!
4.We have professional technical support and after sale service. With a whole line foundry machines,good quality, reasonable prices and stylish designs.
Our Service:
We have strict management system,complete quality guarantee system and fine pre-sale and after-sale service system.
1.Pre-sale Service System
Please do not hesitate to contact with us If you are interested in machine. We can design the machine you requirements.
2.After-sale Service System
24/7 on line,including mobile/wechat/whatsapp etc. Our technician is available to visit and go to your place,and they will help your side for installation,maintenance,and training.
3.Payment
30% Deposit by TT,and The rest 70% by photos or you can check the quality on our factory before they shipment.
