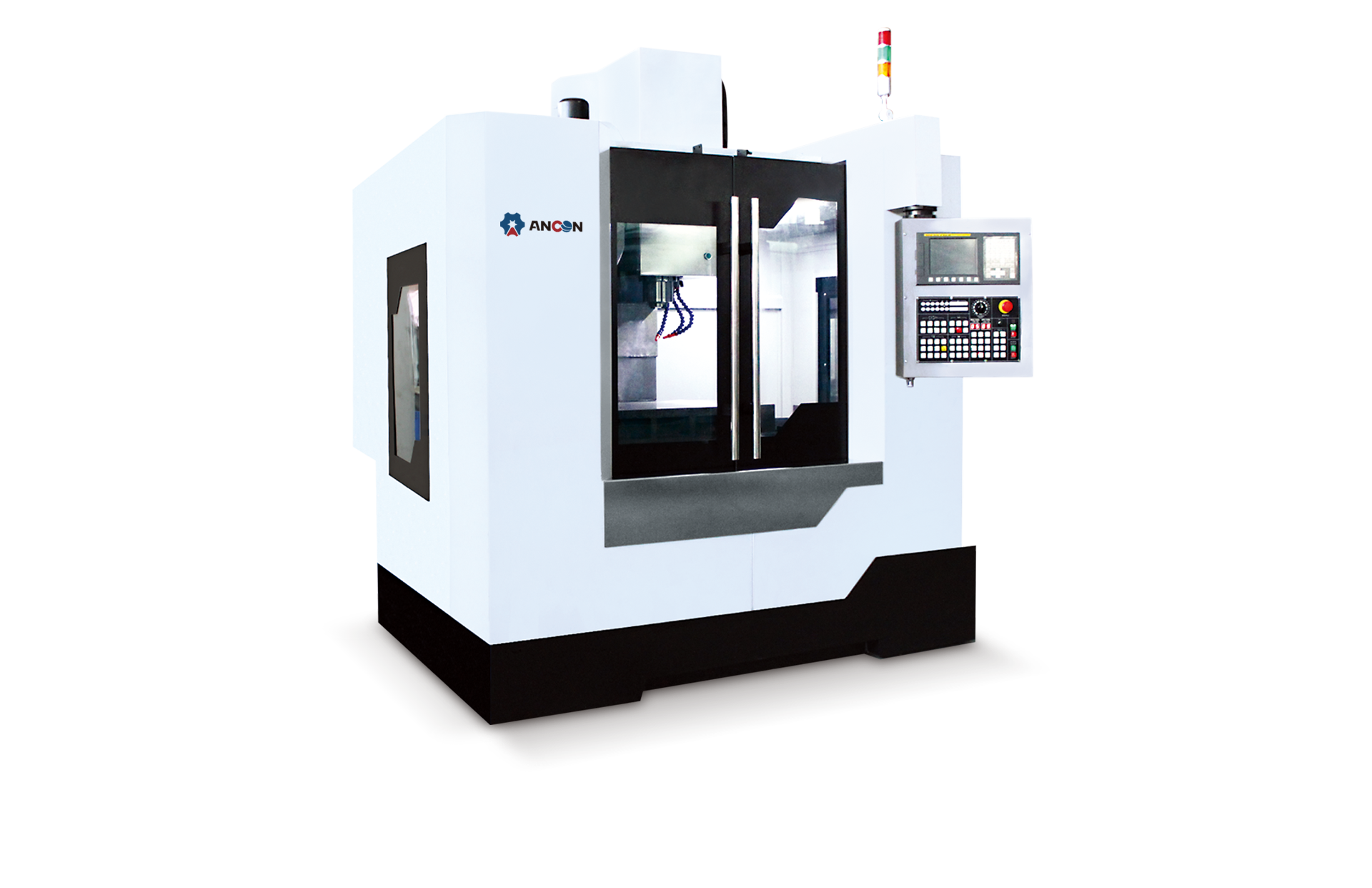

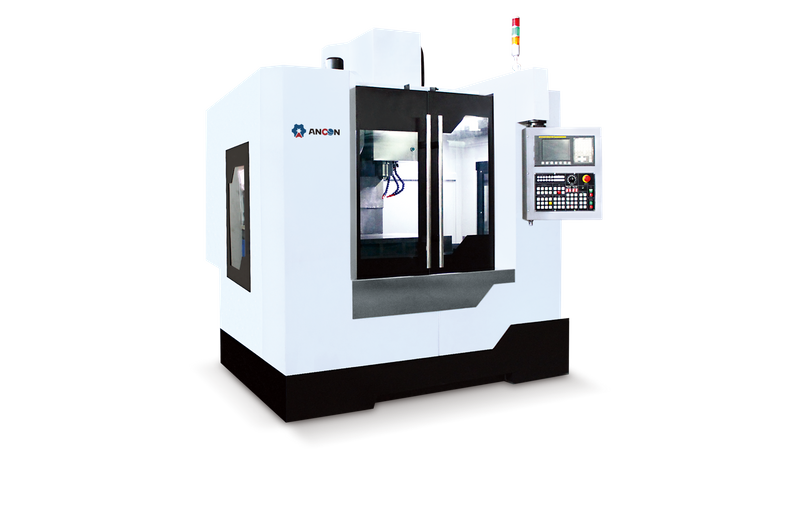

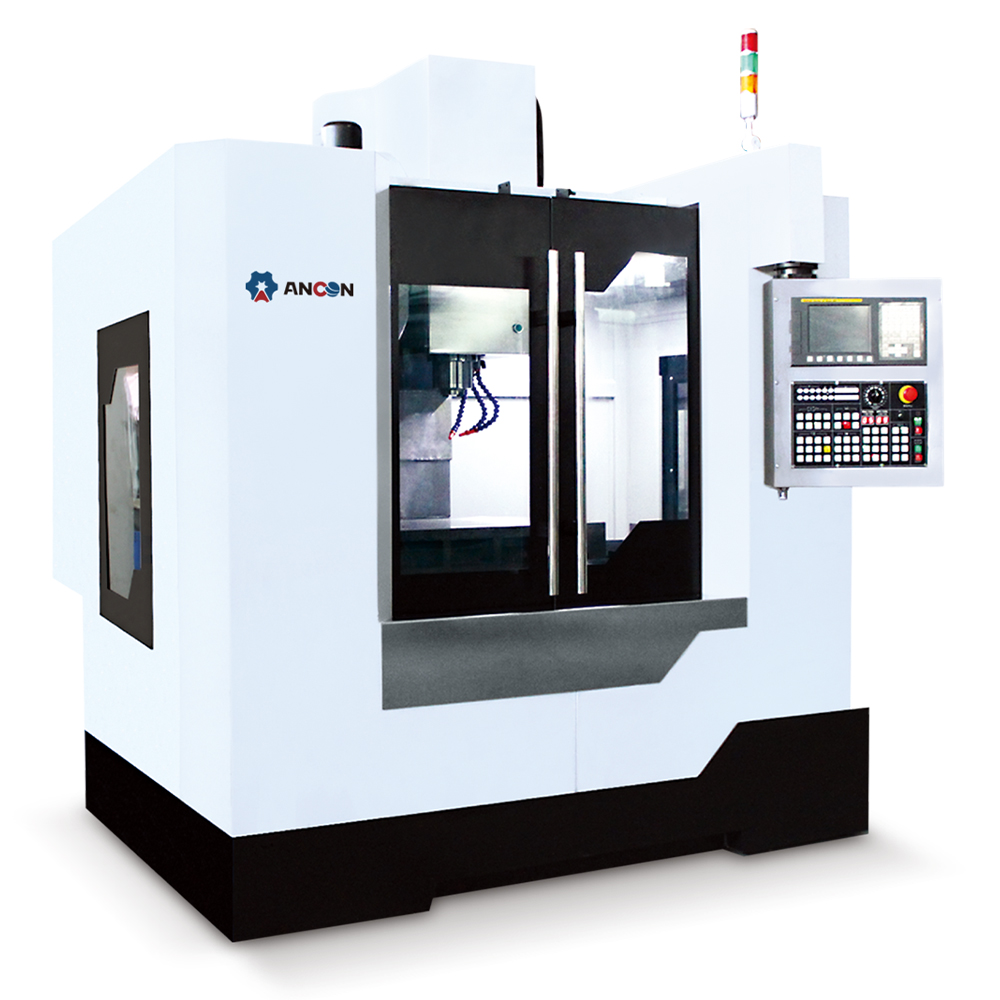

TE-SERIES
Technical High Lights
The TE series spindle adopts advanced precision grade P4 bearing, which has the characteristics of high rigidity and resistance to cutting, and the standard speed is up to 10,000 rpm (BT40)
The Z-axis adopts a non-counterweight design, and the braketype servo motor is directly driven to reduce vibration and enhance the response of the machine tool.
The operation panel can be rotated from 0 degrees to 90 degrees, thereby increasing the operability. It can also increase the comfort of the operator in the process of work, so as to achieve the highest work efficiency.
Technical Parameters
| Item | Unit | Parameter | |||
| Workbench | TE-655 | TE-855 | TE-1060 | ||
| Worktable Size | mm | 800 x 500 | 1000 x 500 | 1100 x 500 | |
| Processing Area | mm | 650 x 550 | 850 x 550 | 1020 x 620 | |
| T-Mlot | mm | 100 x 18 x 5 | 100 x 18 x 5 | 100 x 18 x 5 | |
| Max Loading Of Worktable | kg | 600 | 800 | 1000 | |
| Stroke | Stroke Length Of X/Y/Z Axis | mm | 650/550/550 | 850/550/550 | 1020/620/600 |
| Distance From Spindle Nose To Workbench | mm | 150-700 | 150-700 | 150-700 | |
| Guideway Type Of X/Y/Z Axis | Roller Ail Line | ||||
| Spindle | Taper | -- | BT40 | BT40 | BT40/BT50 |
| Rotating Speed | r/min | 10000 | 10000 | 10000/6000 | |
| Transfer Mode | Spindle Motor(Fanuc) | kw | 7.5 | 7.5 | 11 |
| Spindle Motor(Mitsubishi) | kw | 7.5 | 7.5 | 11 | |
| Three Axis Motor | Three-Axis Servo Motor(Fanuc) | kw | 1.8/1.8/3.0BS | 1.8/1.8/3.0BS | 3.0/3.0/3.0BS |
| Three-Axis Servo Motor(Mitsubishi) | kw | 1.5/1.5/3.0BS | 1.5/1.5/3.0BS | 3.0/3.0/3.0BS | |
| Three-Axis Machining Feed | mm/min | 1-10000 | 1-10000 | 1-10000 | |
| Three-Axis Tapid Movement | mm/min | 48/48/48 | 48/48/48 | 36/48 | |
| Precision | /Positioning Precision | mm | ±0.005 | ±0.005 | ±0.005 |
| Repositioning Accuracy | mm | ±0.003 | ±0.003 | ±0.003 | |
| Other | Machine Weight/Gross Weight | kgs | 4000 | 4600 | 6000 |
| Controller | Controller Of TE Series | Fanuc Oi-MF, Mitsubishi M8OA/M80B, Siemens 828D Basic/828D Solution Lone | |||
| Item | Unit | Parameter | |||
| Workbench | TE-1270 | TE-1370 | TE-1470 | ||
| Worktable Size | mm | 1300 x 700 | 1400 x 700 | 1500 x 700 | |
| Processing Area | mm | 1200 x 720 | 1300 x 720 | 1400 x 720 | |
| T-Mlot | mm | 100 x 18 x 6 | 100 x 18 x 6 | 100 x 18 x | |
| Max Loading Of Worktable | kg | 1000 | 1000 | 1000 | |
| Stroke | Stroke Length Of X/Y/Z Axis | mm | 1200/720/700 | 1300/720/700 | 1400/720/700 |
| Distance From Spindle Nose To Workbench | mm | 150-850 | 150-850 | 150-850 | |
| Guideway Type Of X/Y/Z Axis | Roller Ail Line | ||||
| Spindle | Taper | -- | BT40/BT50 | BT40 | BT40/BT50 |
| Rotating Speed | r/min | 10000/6000 | 10000/6000 | 10000/6000 | |
| Transfer Mode | Spindle Motor(Fanuc) | kw | 15 | 15 | 15 |
| Spindle Motor(Mitsubishi) | kw | 15 | 15 | 15 | |
| Three Axis Motor | Three-Axis Servo Motor(Fanuc) | kw | 3.0/3.0/3.0BS | 3.0/3.0/3.0BS | 3.0/3.0/3.0BS |
| Three-Axis Servo Motor(Mitsubishi) | kw | 3.0/3.0/3.0BS | 3.0/3.0/3.0BS | 3.0/3.0/3.0BS | |
| Three-Axis Machining Feed | mm/min | 1-10000 | 1-10000 | 1-10000 | |
| Three-Axis Tapid Movement | mm/min | 24/36 | 24 | 24 | |
| Precision | /Positioning Precision | mm | ±0.005 | ±0.005 | ±0.005 |
| Repositioning Accuracy | mm | ±0.003 | ±0.003 | ±0.003 | |
| Other | Machine Weight/Gross Weight | kgs | 8000 | 8500 | 9000 |
| Controller | Controller Of TE Series | Fanuc Oi-MF, Mitsubishi M8OA/M80B, Siemens 828D Basic/828D Solution Lone | |||
